Gas Distribution System
Line High Pressure Gas Regulator
Product Details:
| Minimum Order Quantity | 1 Piece |
| Gas | NITROGEN,HYDROGEN,AIR,HELIUM,OXYGEN,ARGON,CO2,N2O,ACETYLENE,HCL,AMMONIA,CHLORINE,H2S |
| Brand | SAMPHIRE |
| Pressure | 70 BAR |
| Regulator Type | High Pressure Regulator |
| Material | Stainless Steel |
| Usage/Application | Industrial |
| Color | Silvery White |
| Rated Flow | 0.6 |
| Automation Grade | Manual |
| Warranty | 12 MONTHS |
Product Details:
| Minimum Order Quantity | 1 Piece |
| With Tube | No |
| Color | SS |
| Brand | SAMPHIRE |
Line High Pressure Gas Regulator
With a focus on the ever-evolving demands of our customers, we have come up with a wide range of uniquely designed Two Stage Pressure Regulator. Our skilled professionals use premium grade components and contemporary technology in the manufacturing process of this regulator. To ensure its functioning and dimension accuracy, this regulator is duly examined against numerous measures of quality in accordance with defined industry standards. With a focus on the ever-evolving demands of our customers, we have come up with a wide range of uniquely designed Two Stage Pressure Regulator. Our skilled professionals use premium grade components and contemporary technology in the manufacturing process of this regulator. To ensure its functioning and dimension accuracy, this regulator is duly examined against numerous measures of quality in accordance with defined industry standards.
Features:
- Stainless Steel Diaphragm
- Standard 10 μm sintered bronze filter at inlet of main valve assembly
- Cleaned for Oxygen service
Specifications:
- Stainless Steel Diaphragm
- Standard 10 μm sintered bronze filter at inlet of main valve assembly
- 1.6 μm internal surface finish as standard
- Cleaned for Oxygen service
- Bubble tight shut-off
- Inlet pressure: 210 bar (3000 psi)
- Outlet range: 0 to 16 bar (360 psi)
- Supply pressure effect less than 0.05%
Samphire manufacturers various kinds of Regulators. Samphire Regulators have been designed to meet the demand of High Purity Corrosion Resistance Product Specially Suited for low level PPM Moisture Two types of Cylinder Regulators available Brass Chrome Plated body with SS diaphragm and SS body with SS diaphragm. Regulator consists of inlet & outlet pressure gauges. Inlet pressure gauge shows the total pressure of cylinder and outlet pressure gauge shows regulated pressure.
Other Details:
- Inlet pressure range: 0 - 240 kg/cm²
- Outlet pressure range: 0 - 14 kg/cm² in diaphragm type
- Outlet pressure range: 0 - 2, 0 - 4, 0 - 7 ,0-16 kg/cm², in piston type
- High pressure single stage regulator with SS 316 body with SS 316 diaphragm with purge value for Ammonia/ Chlorine gases. Inlet pressure 0-42 kg/cm² & Outlet pressure gauge 0-7 kg/cm²
- High pressure single stage regulator with SS 316 body with SS 316 diaphragm with purge value for Ammonia gases. Inlet pressure 0-42 kg/cm² & Outlet pressure gauge 0-7 kg/cm²
- Ammonia Gas Regulators. The offered regulators are widely used for regulating high pressure ammonia gas in pipeline or cylinder for required working pressure. These regulators are highly appreciated by our clients for their durability and easy installation feature
Additional Information:
- Pay Mode Terms: L/C (Letter of Credit),T/T (Bank Transfer),D/P,D/A,Other
- Port of Dispatch: Mumbai
- Production Capacity: 200 montly
- Delivery Time: 2-3 days
- Packaging Details: Standard Packing
Callback
High Pressure Line Gas Regulators
Product Details:
| Minimum Order Quantity | 1 Piece |
| Gas | NITROGEN,HYDROGEN,AIR,HELIUM,OXYGEN,ARGON,CO2,N2O,ACETYLENE,HCL,AMMONIA,CHLORINE,H2S |
| Brand | SAMPHIRE |
| Pressure | 150 BAR |
| Regulator Type | High Pressure Regulator |
| Material | Stainless Steel |
| Usage/Application | Industrial |
| Color | Silvery White |
| Rated Flow | 0.6 |
| Automation Grade | Manual |
| Warranty | 12 MONTHS |
With a focus on the ever-evolving demands of our customers, we have come up with a wide range of uniquely designed High Pressure Line Gas Regulator. Our skilled professionals use premium grade components and contemporary technology in the manufacturing process of this regulator. To ensure its functioning and dimension accuracy, this regulator is duly examined against numerous measures of quality in accordance with defined industry standards. With a focus on the ever-evolving demands of our customers, we have come up with a wide range of uniquely designed Two Stage Pressure Regulator. Our skilled professionals use premium grade components and contemporary technology in the manufacturing process of this regulator. To ensure its functioning and dimension accuracy, this regulator is duly examined against numerous measures of quality in accordance with defined industry standards.
Features:
- Stainless Steel Diaphragm
- Standard 10 μm sintered bronze filter at inlet of main valve assembly
- Cleaned for Oxygen service
Specifications:
- Stainless Steel Diaphragm
- Standard 10 μm sintered bronze filter at inlet of main valve assembly
- 1.6 μm internal surface finish as standard
- Cleaned for Oxygen service
- Bubble tight shut-off
- Inlet pressure: 210 bar (3000 psi)
- Outlet range: 0 to 25 bar (360 psi)
- Supply pressure effect less than 0.05%
Athena manufacturers various kinds of Regulators. Athena Regulators have been designed to meet the demand of High Purity Corrosion Resistance Product Specially Suited for low level PPM Moisture Two types of Cylinder Regulators available Brass Chrome Plated body with SS diaphragm and SS body with SS diaphragm. Regulator consists of inlet & outlet pressure gauges. Inlet pressure gauge shows the total pressure of cylinder and outlet pressure gauge shows regulated pressure. High pressure piston type Regulator & Regulators for corrosive gases like Ammonia, Chlorine, etc. are also available.
Type | Single-stage / Double-stage/ Piston/ |
Material of construction | SS 316 / Brass Chromplated |
Diaphragm | SS 316 with Teflon Seat |
Pressure Gauges | SS 316 / Brass |
Inlet Pressure | 0-210 kg/cm², 0-280 kg/cm² |
Outlet Pressure | 0-2 kg/cm², 0-7 / 0-10 / 0-16 kg/cm²/ as per requirement |
Flow (LPH) | 300 (max) |
Gas Services | Air, N2, H2, HE, Acetylene, Argon, N2O, Methane, |
| Ammonia, HCL, Chlorine, SO2, Isobutene & other gases |
Outlet Connection | 1/4, 1/8 OD NPT / Hose |
Inlet Connection | As per requirement of Gas |
- Stainless Steel Diaphragm
- Standard 10 μm sintered bronze filter at inlet of main valve assembly
- Cleaned for Oxygen service
Callback

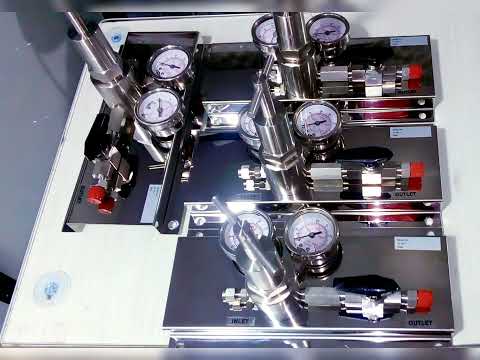

Gas Distribution Systems
Product Details:
| Minimum Order Quantity | 1 Piece |
| Automation Grade | MANUAL |
| Usage/Application | NITROGEN,HYDROGEN,AIR,HELIUM,OXYGEN,ARGON,CO2,N2O,ACETYLENE,HCL,AMMONIA,CHLORINE,H2S |
| Brand | SAMPHIRE |
| Material | SS |
| Shape | Round |
| Temperature Range | 30 DEGREE |
| Pressure Rating | High |
| Design | Standard |
| Country of Origin | Made in India |
| Number of Stages | 01 |
Specification/Additional Details
- Service LocationALL OVER INDIA
- GasALL
- BrandSAMPHIRE
- Pressure150 BAR
- Regulator TypeHigh Pressure Regulator
- MaterialStainless Steel
Double Stage High Pressure Piston Regulator:
Being a customer driven association, we are occupied with offering an unique gathering of Double Stage High Pressure Piston Regulator.Our gifted experts fabricate this controller by utilizing generally tried crude material and advanced engineering. Notwithstanding this, our offered reach is thoroughly tried by our quality controllers against differing parameters to convey a deformity free roaming at customers end. Also, the offered extent is widely increased in value by our customers for emphasizing variegated properties like simple establishment and sturdiness.
Features:
- Sturdiness
- Corrosion-resistance
- Enhanced durability
High pressure piston type cylinder regulator brass chromplated body:
- Inlet pressure gauge 0-280 kg/cm²
- Outlet pressure gauge 0-100 kg/cm² (as per requirement)
- For O2, Ar, He, CO2, N2, H2, Air, Gas
High pressure piston type cylinder regulator SS316 body:
- Inlet pressure gauge 0-280 kg/cm²
- Outlet pressure gauge 0-100 kg/cm² (as per requirement)
- For O2, Ar, He, CO2, N2, H2, Air, Ga
High pressure piston type cylinder regulator brass chromplated body:
- Inlet pressure gauge 0-280 kg/cm²
- Outlet pressure gauge 0-100 kg/cm² (as per requirement)
- For O2, Ar, He, CO2, N2, H2, Air, Gas
High pressure piston type cylinder regulator SS316 body:
- Inlet pressure gauge 0-280 kg/cm²
- Outlet pressure gauge 0-100 kg/cm² (as per requirement)
- For O2, Ar, He, CO2, N2, H2, Air, Gas
Callback
Gas Distribution Panel
Product Details:
| Minimum Order Quantity | 3 Piece |
| Model Name/Number | SEE-1GDP |
| Automatic Grade | Semi-Automatic |
| Brand | Samphire |
| IP Rating | IP40 |
| Material | ms or ss |
Gas distribution panel is used when there is more than one Gas Chromatograph.
It helps to controlled the flow & pressure of different gases for different GC's. Available in three different types. One is with pressure gauge, pressure regulator, ON/OFF valve. Second with pressure gauge and ON/OFF valve.Third is with only ON/OFF valve.
Callback
Mini Gas Station
Product Details:
| Brand | Samphire |
| Flow Rate | 0-300 LPM |
| Automatic Grade | Semi Automatic |
| Body Material | MS |
| Inlet Pressure | 7 bar |
| Port Size | 1/4" |
Gas Selector Box is used for the selection between two gases of different types. Two types of gas selector box available one with selector valve, pressure gauge & toggle valve, another with only two toggle valve. Standard system consists of a panel incorporating gas controls and purification traps for four gases in a unit, namely, Nitrogen, Helium, Hydrogen and Zero Air.
Callback
Gas Mini Station
Product Details:
| Minimum Order Quantity | 1 Piece |
| Body Material | MS |
| Flow Rate | 250 LPM |
| Color | AS PER GAS |
| Automation Grade | Manual |
| Brand | SAMPHIRE |
| Model Name/Number | SEE-GDS1 |
